HiTechnic MiniScope Oscilloscope Board (PL053)

The HiTechnic MiniScope is specially designed to work with the SuperPro board. It fits into a standard breadboard making it easy to use with testing new circuits.

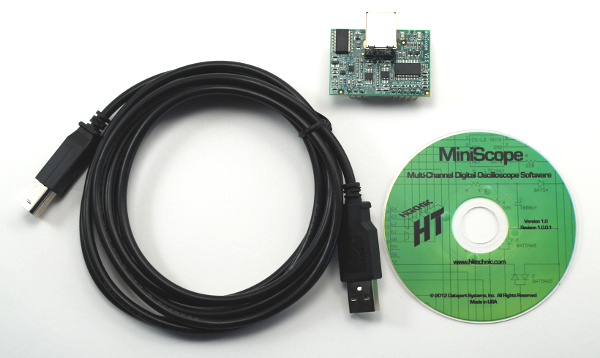

What’s included

MiniScope circuit board – small circuit board that fits directly into a standard breadboard
USB cable – for connecting the MiniScope board to the PC
DVD – MiniScope application for Windows XP or higher; MiniScope Application Guide
Oscilloscope Hardware Features:
Two analog inputs with an input range of -5 to 5 volts
Four binary inputs with input range from 0 to 5 volts. (voltage >1.6 is a 1, otherwise 0)
Sampling rate up to 100,000 samples per second (up to 10kHz signals)
Hardware trigger on either a positive or negative slope on A or B analog inputs channels
Trigger on any logical combination of the four binary inputs
Below is a breadboard layout showing the MiniScope used with the HiTechnic SuperPro:

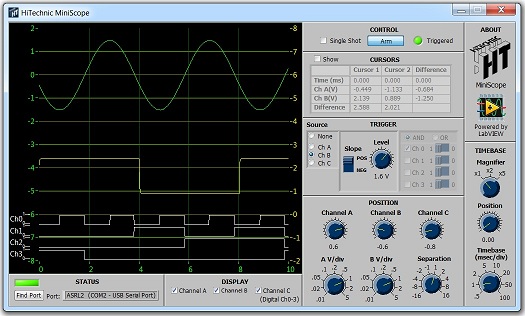

MiniScope Application Features

Select which analog or digital channels to display
Timebase from 5ms to 1000ms
Vertical scale for analog inputs from 0.01 to 5 volts per division
Vertical position control for analog and digital graphs
Movable cursors to see exact analog values for two different time points in data
Microsoft Windows XP or higher

MiniScope Application Guide
Get started using the MiniScope with the MiniScope Application Guide. Used together with the HiTechnic SuperPro Experimenters Kit, this guide shows how to connect the MiniScope and the SuperPro together on a breadboard.
