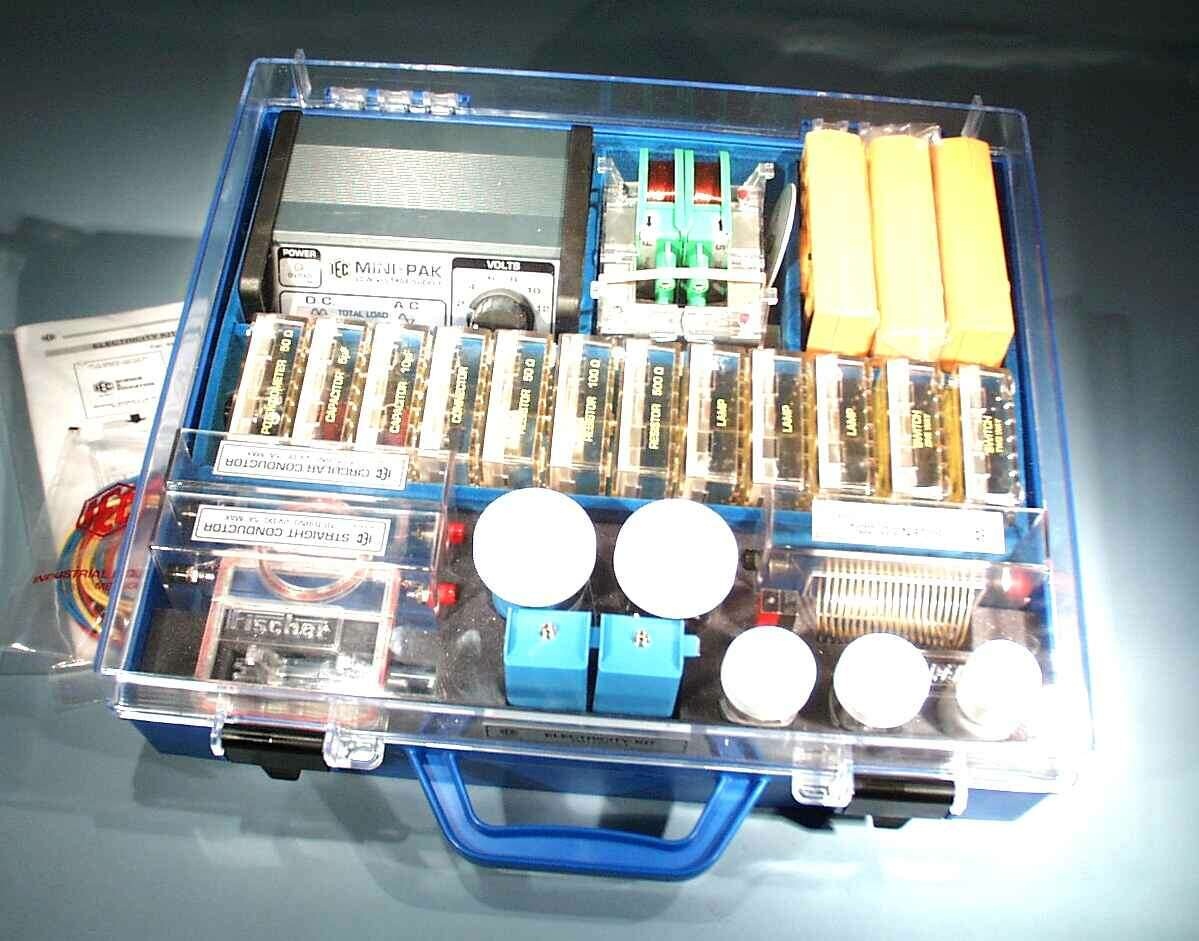

Komplet i plotë i Elektromagnetizmit (EM031)

KIT CONTENTS:
• 1x Potentiometer, 50 Ohms, 3 Watt, wire wound, in housing.
• 1x Resistor 50 Ohms, in housing.
• 1x Resistor 100 Ohms, in housing.
• 1x Resistor 500 Ohms, in housing.
• 2x Capacitors 5uF (+/-10%) in housing
• 1x Capacitor 10uF (+/-10%) in housing.
• 3x Lamp holder, in housing.
• 1x Switch, single pole, one way, in housing.
• 1x Switch, single pole, two way, in housing.
• 1x Connector box (for alligator clips to hold wires)
• 1x Power Supply. Input: 220/240V.AC. Output: Switched at 2, 4, 6, 8, 10, 12V output,
both AC and DC at 5 amps total load. DC is full wave, unfiltered. Automatically resetting
overload with indication. With removable mains cable.
• 1x Set of 12x cables with moulded and stackable 4mm Banana Plugs.
• 1x Set of “U” and “I” core for transformer study, with elastic bands.
• 3x Coils to fit the “U” & “I” core. 2x 300T, 1x 600T
• 1x Set/3 plain iron cores (1x long, 2x short) for magnetic experiments.
• 1x Aluminium Disc & Axle for eddy current brake experiment.
• 3x Multi-meters, digital, with 4mm banana plug cables.
• 2x Cell holders for ‘D’ cell.
• 2x Plastic supports for holding iron cores to “U” core.
• 1x Pair bar ‘Alnico’ magnets (75mm long x12mm x8mm).
• 1x Set/3 magnetic field demonstrators suitable for bench work or for o/head projector:
Circular coil Straight conductor Solenoid coil. Iron Filings in a shaker.
• 10x Plotting Compasses.
• 10x MES lamps for 2.5 Volts 200mA 10x MES lamps for 12 Volts 100mA.
• 1x pair of strong “alnico” bar magnets.
• 3x Rolls of wire & capacitor measuring wires:
• 1x Roll: 100m Copper wire, 0.2mm diameter
• 1x Roll: 100m Resistance wire, “Constantan” 0.2mm diameter
• 1x Roll: 50m 1 Amp fuse wire, 0.05mm diameter.
• 4x Wires for fitting into capacitor sockets of multimeters for connection.
• 2x Paper clips for connections etc.

Various items:
• 2x electrode plates. 1x Copper, 1x Zinc, size 70 x 20mm.
• 1x Ring for ‘Thompson’s Ring’ experiment.
• 1x Compass for determining North/South Pole of magnetic fields
