This item is used only for transformer theory, turns ratios, magnetising current and many
other aspects of transformers and inductors. The laminated U and I cores are held together
by strong rubber bands and the laminated I core can be replaced with a plain iron core to
study losses in the iron and heating due to eddy currents.
The cores may be used on either AC or DC and study in electromagnets can be performed.

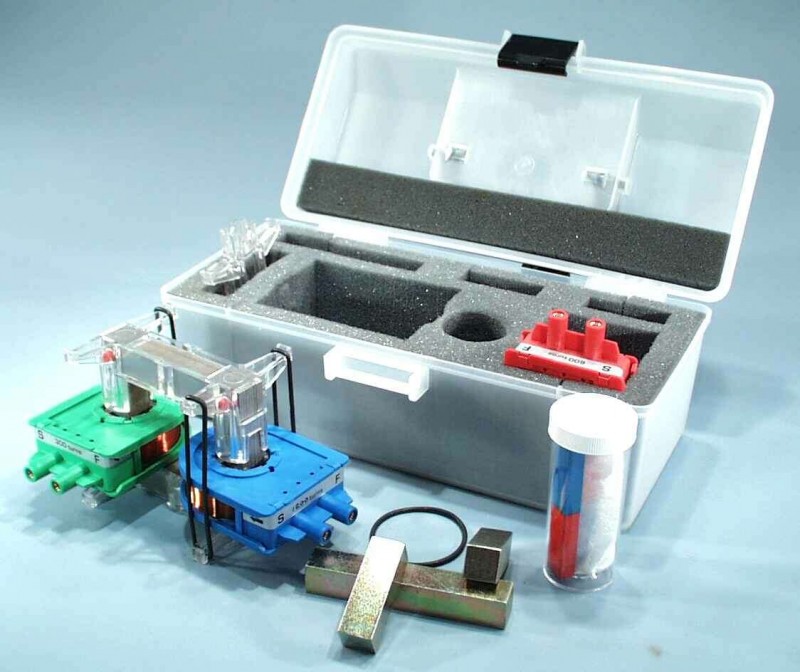

KIT CONTAINS:
• 1x Laminated iron core, U and I. Cross section of iron: 16x16mm. The laminations
are held in strong plastic formers for easy dismantling.
• 1x Primary coil, 600 turns. Suitable for 12V.AC. on the iron circuit.
• 2x Secondary coils, 300 turns
• 1x Plain iron bar (long) to replace laminated I core for some experiments.
• 2x Plain iron bars (short) for making electro magnets.
• 2x Plastic clamps for holding short iron cores in place.
• 2x Strong bar magnets for experiments in induction and magnetic fields.
• 1x Carry case with handle and sponge foam fitments.
• Instruction booklet
